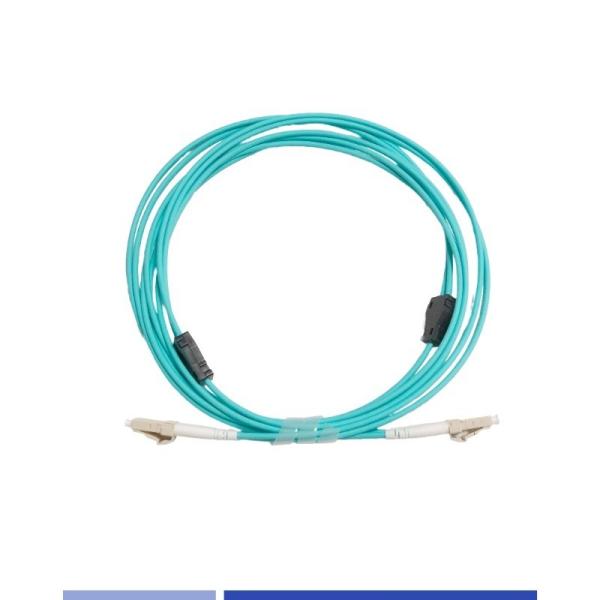

Multimode OM3 Armored Fiber Optic Patch Cord Duplex 1m LSZH Jacket Lc To Lc Fibre Cable

Product Categories
Gorelink Communication (Shenzhen) Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Multimode OM3 Armored Fiber Optic Patch Cord Duplex 1m LSZH Jacket Lc To Lc Fibre Cable

Brand Name : GoreLink

Model Number : G223-2112-1

Certification : RoHS,REACH

Place of Origin : CHINA

MOQ : 1pc

Payment Terms : T/T,Paypal,Western Union

Delivery Time : 1-3 Working days

Packaging Details : 1pc/Polybag

Product : Armored Fiber Optic Patch Cable

Part Number : G223-2112-1

Fiber Type : Multimode OM3

Connector : LC-LC

Polish : UPC

Fiber Count : Duplex

Length : 1m

Jacket : LSZH

Insertion loss : ≤0.3dB

Return loss : ≥50dB

Quality control : 100% test before shipping

Wavelength : 850nm,1310nm

Color : Aqua or Cusomized

Contact Now

LC-LC Armored Fiber Optic Patch Cable, Multimode OM3, Duplex,1m,LSZH jacket

Gorelink Amored fiber optic patch Cords are designed for use in harsh environments, where the traditional standard fiber optic patch lead can not perform structurally to the requirement. Its structure contains stainless steel armor inside the jacket, this will help make the armored fiber patch cord resistant of high tension and pressure and it is not easy to break when bent or dragged. The stainless steel tube prevents optic fiber from damage that improves stability of the system.

It is crush and rodent resistant without being bulky, heavy, or messy.Armored fiber optic patch cables are made with similar outer diameter to standard patch cables, making them both space saving and strong.

Application

  • FTTH access network

  • Telecommunication Networks

  • CCTV Networks

  • Data Center

  • Local Area Networks

General Specification

Fiber Mode

Multimode OM3 50/125um

ConnectorLC-LC

Cable structure

Duplex

Strength Member

Sprial steel with Aramid Yarn

Cable Diameter

3.0mm

Cable Color

Aqua

Polishing Way

UPC

Connector Color

Beige (SC,LC)

Cable Jacket

LSZH

Cable length

As per the order request

OPTICAL PERFORMANCE

Fiber Type

Multimode OM3 50/125um

Insertion Loss(IL)

≤0.3 dB

Return Loss(RL)

≥30dB

Attenuation(dB/KM)

850nm≤3.0dB

1300nm ≤1.0dB

10G Ethernet300m at 850nm
Operating Temperature-10 to + 70°C
Storage Temperature-20 to + 70°C

Multimode OM3 Armored Fiber Optic Patch Cord Duplex 1m LSZH Jacket Lc To Lc Fibre Cable

Ordering Information

PART NO.

DESCRIPTION

G223-2112-1

Armored Fiber optic patch cord, LC/UPC-LC/UPC MM OM3, Duplex, 3.0mm LSZH jacket 1m

G223-2112-2

Armored Fiber optic patch cord, LC/UPC-LC/UPC MM OM3, Duplex, 3.0mm LSZH jacket 2m

G223-2112-3

Armored Fiber optic patch cord, LC/UPC-LC/UPC MM OM3, Duplex, 3.0mm LSZH jacket 3m

G223-2112-5

Armored Fiber optic patch cord, LC/UPC-LC/UPC MM OM3, Duplex, 3.0mm LSZH jacket 5m

G223-2112-10

Armored Fiber optic patch cord, LC/UPC-LC/UPC MM OM3, Duplex, 3.0mm LSZH jacket 10m

G223-2112-15

Armored Fiber optic patch cord, LC/UPC-LC/UPC MM OM3, Duplex, 3.0mm LSZH jacket 15m

G223-2112-20

Armored Fiber optic patch cord, LC/UPC-LC/UPC MM OM3, Duplex, 3.0mm LSZH jacket 20m

* Customized

If you need any more help, please feel free to contact us at sales@gorelink.com .


Product Tags:

Armored Fiber Optic Patch Cord Multimode



Duplex Armored Fiber Optic Patch Cord



LSZH Lc To Lc Fibre Cable


China Multimode OM3 Armored Fiber Optic Patch Cord Duplex 1m LSZH Jacket Lc To Lc Fibre Cable factory

Multimode OM3 Armored Fiber Optic Patch Cord Duplex 1m LSZH Jacket Lc To Lc Fibre Cable Images
