24 Core Outdoor Fiber Optic Cable Singlemode 9/125um Armored PE GYTS Duct cable

Gorelink Communication (Shenzhen) Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

24 Core Outdoor Fiber Optic Cable Singlemode 9/125um Armored PE GYTS Duct cable

  • 1
  • 2
  • 3

Brand Name : GoreLink

Certification : ISO,RoHS,REACH

Place of Origin : Made in China

MOQ : 1000m

Payment Terms : T/T,Paypal,Western Union,

Delivery Time : As per the order quantity

Packaging Details : Wooden Drum/Spool+Carton

Model Number : GL-GYTS-824

Application : Suitable for Duct,Aerial laying

Part Number : GL-GYTS-824

Fiber Type : Singlemode 9/125um

Cable Type : Armored

Design : Stranded loose tube design

Strength Member : Metallic central strength member

Armor : Corrugated Steel Tape armor

Maximum Capacity : 288 cores

Fiber Code : GYTS

Operating temperature : -40 ~+70

Outer Jacket : PE

Contact Now

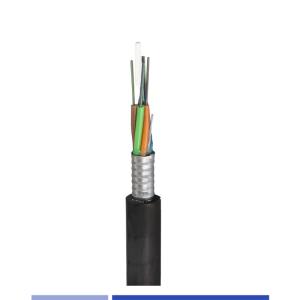

Gorelink GYTS Outdoor Fiber optic cable are designed for outside plant applications and intended for use in communication network connects requiring cable to be installed within duct systems or lashed to aerial messenger wire structures.It is metallic strength member with corrugated steel tape armor protection.The stranded loose tube design provides stable performance over a wide temperature range and is compatible with any telecommunications grade optical fiber.

Application

  • FTTH access network

  • Telecommunication Networks

  • CCTV Networks

  • Data Center

  • Local Area Networks

General Specification

Fiber Mode

Singlemode G652D

Fiber Count

24 Core

Cable structure

Stranded Loose tube

Cable Armor

Corrugated Steel Tape Armor

Strength Member

Metallic

Cable Diameter

9.8-10.5mm

Outer Jacket

PE

Cable Color

Black

Cable length

As per the order request

OPTICAL PERFORMANCE

Attenuation(dB/km)

≤0.36 dB @1310nm

Core diameter(um)

9±2.5

Cladding diameter(um)

125±1.0

Wavelength

1310nm / 1550nm


24 Core Outdoor Fiber Optic Cable Singlemode 9/125um Armored PE GYTS Duct cable

Download Datasheet

Outdoor Armored Fiber Optic Cable- GYTS-Singlemode

Ordering Information

PART NO.

DESCRIPTION

GL-GYTS-806

Outdoor Armored Fiber Optic Cable,6 Fiber,Singlemode G652D,PE,Black,GYTS

GL-GYTS-808

Outdoor Armored Fiber Optic Cable,8 Fiber,Singlemode G652D,PE,Black,GYTS

GL-GYTS-812

Outdoor Armored Fiber Optic Cable,12 Fiber,Singlemode G652D,PE,Black,GYTS

GL-GYTS-824

Outdoor Armored Fiber Optic Cable,24 Fiber,Singlemode G652D,PE,Black,GYTS

GL-GYTS-848

Outdoor Armored Fiber Optic Cable,48 Fiber,Singlemode G652D,PE,Black,GYTS

GL-GYTS-896

Outdoor Armored Fiber Optic Cable,96 Fiber,Singlemode G652D,PE,Black,GYTS

GL-GYTS-8144

Outdoor Armored Fiber Optic Cable,144 Fiber,Singlemode G652D,PE,Black,GYTS

* Customized

If you need any further assistance, please feel free to contact us at sales@gorelink.com .
